Description

Cube 4Nano(Dyna)

The iCON ProAudio Cube4Nano Dyna USB audio interface provides audio input and output modules, as well as analog and digital connections for live streaming applications with any smart mobile device. Key features include:

• 24-bit 192KHz 2 x mic input / 2 x digital input, 2 x output USB audio interface
• High-end studio-grade DAC/ADC provides ultra-high dynamic range
• Dynamic range: 127dB
• Supports simultaneous connection between Mac/PC and smart mobile devices
• 4×4 analog I/O full-duplex record and playback
• Compatible with iOS and Android Digital I/O jack (Type-C) and analog I/O jack (3.5 mm stereo TRRS)
• Connect directly to smartphones, tablets or other devices
• Microphone/instrument preamp with independent gain control and phantom power switch

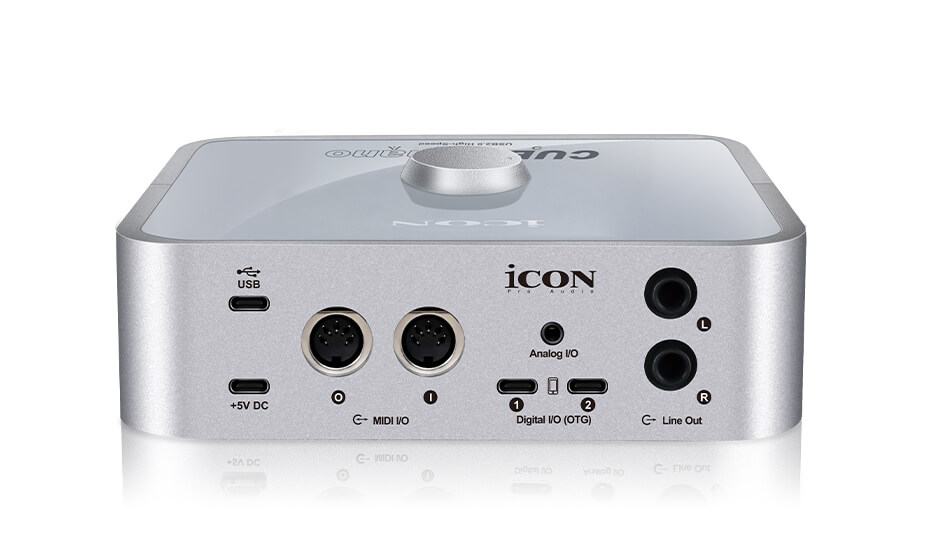

• 2 analog outputs on 6.35mm TRS jacks or 3.5mm stereo analog output
• Top panel equipped with controls for direct monitoring level
• Top panel equipped with direct monitoring buttons
• Headphone output with assignable source and individual volume controlw
• 2 Type-C “OTG” ports for direct connection of 2 mobile devices
• Flexible channel routing via ProDriver4 software control panel
• Provides ultra-low latency ProDriver4™ drivers developed by ICON ProAudio
• ProDriver 4™ LoopBack feature available on both Mac and Windows platforms
• Audio signal processing available via the ProDriver4 virtual plug-in rack, allowing real-time sessions
• Equipped with USB2.0 high speed and USB bus power supply
• ARM-M7/500MHz processing power and technology for ultra-fast and stable signal processing
• Support DirectSound, WDM and ASIO2.0
• Compatible with mac OS (Intel-Mac) 10.11 and higher, iOS 9 and higher, Android and Windows 7, 8 and 10 (32-bit/64-bit)
• Full duplex, simultaneous record/playback
• When used with iOS, can connect to +5VDC external power supply
• Sturdy aluminum construction
• Bundle Bitwig Studio 16 Track
• Comes with Dotec audio plugin
